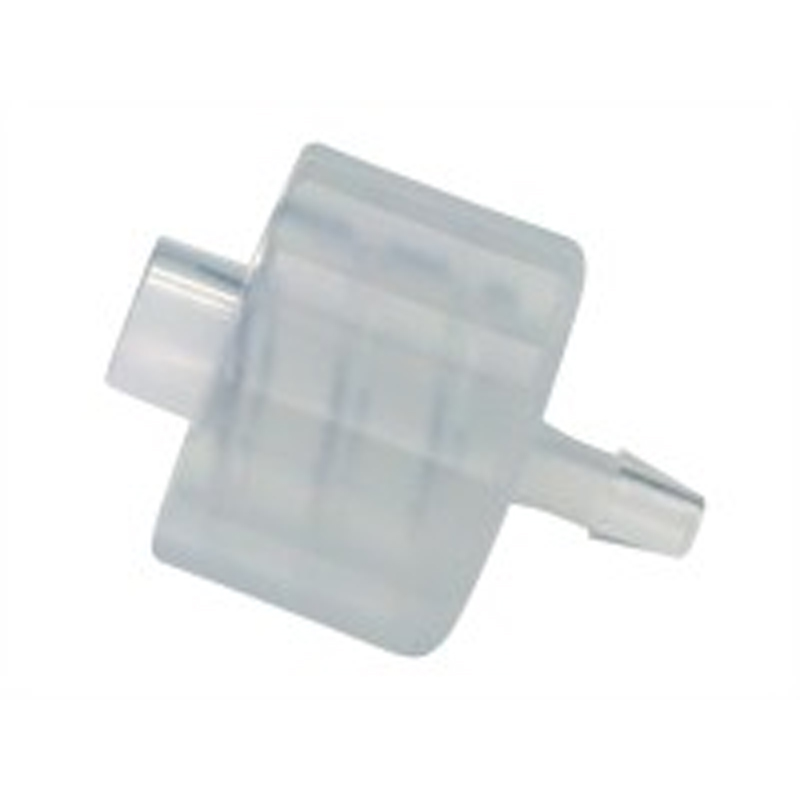

Connects female Luers with 0.5, 0.8 or 1.6 mm ID tubing
The Luer Lock system provides an easy closing and re-opening mechanism
Technical Features:
| Male Luer Lock | | Suitable for | Female Luer or Luer Lock adapters | | ID | 3 mm |
| Single Barb | | Suitable for | Flexible tubes, ID 0.5-1.6 mm | | ID | 1 mm |
| |
| General | | Total height | 15 mm | | Angle | Straight (0°) | | Temp. stability | Up to 125 °C (autoclav.) | | Material | Polypropylene | | Color | Natural | | Max. pressure | 500 mbar
|
|
| 貨號 | 產品名稱 | 規格（個/盒） |
| 10802 | 流體實驗 彎頭 魯爾轉接頭 | 50 |
| 10820 | 嵌入式魯爾注入端口 | 25 |
| 10821 | 軟管夾 | 5 |
| 10822 | 魯爾公插頭 | 25 |
| 10823 | 魯爾母固定連接器 | 25 |
| 10824 | 魯爾公接頭 | 25 |
| 10825 | 魯爾固定母接頭 | 25 |
| 10826 | 魯爾固定公接頭 | 25 |
| 10827 | Y型軟管配件0.8mm | 25 |
| 10828 | Y型軟管配件1.6mm | 25 |
| 10829 | 減管徑配件 | 25 |
| 10830 | ibidi串聯連接管 | 6x2 |
| 10831 | 適配管道套裝 | 6x2 |
| 10840 | ibidi硅膠管 0.5mm | 1 |
| 10841 | ibidi硅膠管 0.8mm | 1 |
| 10842 | ibidi硅膠管 1.6mm | 1
|
